Mobile crane
The 5-axle crane now not only shines with state-of-the-art technology, but also with the typical LICCON3, trend-setting crane design.
The third generation of the LICCON control system takes the familiar crane control to a new level and features some impressive new technologies.
Carrying a large part of its ballast means there is often no need for an additional transport vehicle.
Many jobs can be completed quickly without any additional equipment thanks to its long boom and the ballast it carries.
Hillstart-Aid helps starting on a gradient – consigning rolling backwards to history.
ECOmode and ECOdrive reduce fuel consumption by up to 10%.
Weighted plates on both sides of the hook block enable the weight of the block to be adjusted perfectly to the situation.
ECOmode minimises both fuel consumption and noise emissions when operating the crane superstructure. The crane operator sets the required working speed using the control lever. The crane control system calculates the perfect engine speed for the diesel engine.
ECOdrive makes the mobile crane significantly more comfortable and quieter by reducing the engine speed. Faster gearshifting delivers greater dynamic and traction offroad. On the road, the torque from the Liebherr diesel engine is used efficiently to minimise fuel consumption.

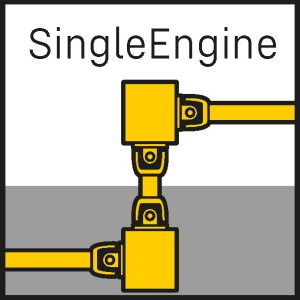

Take one engine out to increase lifting capacity. Or more accurately – the superstructure is powered by the undercarriage engine. Gear shafts are routed from the distributor gear in the substructure via two mitre gears to the pump distributor gear in the superstructure. That enables us to remove one engine – and we use this to increase the crane’s lifting capacity.
Hillstart-Aid makes starting on gradients easier. Move off safely and easily without rolling backwards.

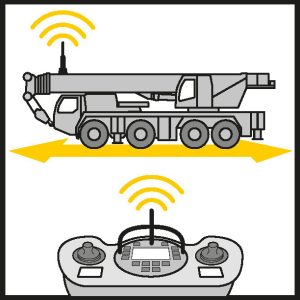

The RemoteDrive remote control enables the crane to be controlled from outside the driver’s cabin. This is not only possible during crane operations, but also whilst driving on the site. This delivers greater safety and comfort as the crane operator has a better view of problem areas as he can be right next to them. In other words, the operator can move himself to the areas with difficult access.
The third generation LICCON control system features the same time-tested operation as previous generations and adds a fast data bus, significantly more storage space and greater computing power. LICCON3 cranes are prepared for telematics and fleet management.
VarioBase makes the crane’s support system variable. It enables each outrigger to be extended to a different length. This enhances safety – particularly in constricted spaces. And what's more, the crane’s lifting capacities are significantly increased, particularly over the outriggers and depending on the configuration.
The AutoBallast function completes the ballasting process automatically. All the steps are carried out after the button has been pressed just once.
Increased flexibility and safety by using lifting capacity tables with different maximum wind speeds.
Up to 90 % lower CO2 emissions in action.
Driver assistance systems for extra safety on the road. All new mobile crane models are equipped with driver assistance systems that support the crane driver with additional „eyes“. They scan the environment and warn the crane driver to prevent accidents.
| Max lifting capacity | 150 t |
|---|---|
| Capacity at radius | 3 m |
| Telescopic boom length | 66 m |
| Max hoist height | 92 m |
| Max radius | 72 m |
| Lattice jib (min) | 2.9 m |
| Lattice jib (max) | 26 m |
| Max driving speed | 85 km/h |
| Engine power | 400 kW |
| Total ballast | 45 t |
